High-Performance Liquid Chromatography Systems by DIVISION LC

High-Performance Liquid Chromatography (HPLC) and Ultra-High-Performance Liquid Chromatography (UHPLC) are essential analytical techniques for separating, identifying, and quantifying compounds in complex mixtures. DIVISION LC systems combine high speed, precision, and separation efficiency, delivering the performance of multiple traditional HPLC systems in significantly less time.

By minimizing solvent consumption and utilizing intelligent control, these systems reduce operational costs while providing superior sensitivity and resolution for demanding applications in food safety, pharmaceuticals, environmental analysis, and quality control.

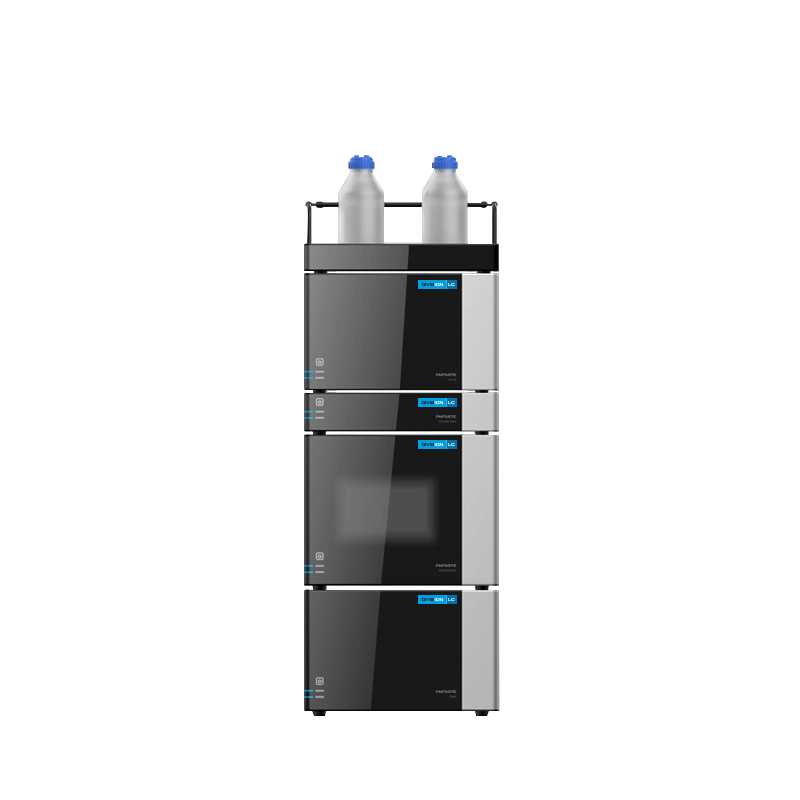

DIVISION LC (UHPLC System)

The DIVISION LC is a versatile UHPLC platform designed for high-throughput and high-resolution analysis. It integrates innovative hardware with user-friendly software to meet the rigorous demands of modern laboratories.

Key Features:

• High-Speed Separation: Performs the work of several traditional HPLC systems in less time.

• Cost-Efficient Operation: Reduces eluent consumption through intelligent flow and gradient management.

• High-Precision Pump Module: Ensstable gradient formation and minimal system dead volume.

• Innovative Autosampler: Features “needle-in-flow” technology to minimize cross-contamination and ensure precise injection.

• Specialized Software: SmartLab control software with a interface for instrument control, method development, and data processing.

DIVISION TQ (UHPLC-MS/MS Triple Quadrupole Detector)

The DIVISION TQ is a high-performance tandem mass spectrometric (MS/MS) detector designed for integration with the DIVISION LC system. It provides exceptional sensitivity, stability, and robustness for the most challenging quantitative analyses.

Key Features:

• Advanced Ion Source: Vertical orthogonal design with a large aperture cone and high-temperature nitrogen purge for outstanding solvent removal efficiency and contamination resistance.

• Heated Gas System: Gas heating up to 700°C with adjustable pressure enables efficient nebulization and ionization across a wide eluent flow range (0.2 µL/min to 3 mL/min).

• Active Gas Evacuation System: Prevents memory effects and enhances quantitative stability in complex matrices.

• Computational Fluid Dynamics (CFD)-Optimized Ion Collection: Maximizes ion transmission efficiency.

• High-Precision Quadrupole Assembly: Provides high contamination resistance, reducing maintenance needs and operational costs.

• Collisional Deceleration and Focusing Ion Transfer System: Utilizes electric field modeling for ultra-high ion transfer efficiency.

• High Sensitivity: Pre-filter with the same field radius as the quadrupoles ensures exceptional detection limits.

Performance Example:

• Calibration curves for compounds like chlorsulfuron and metamidophos in the range of 0.1 – 20 ng/mL with R² = 0.9919-0.9999.

• Reliable detection and quantification of 30 pesticides and their metabolites in plant material at levels as low as 1 ng/mL.

Why Choose DIVISION LC Systems?

• Speed & Efficiency: UHPLC technology drastically reduces analysis time.

• Cost Reduction: Lower solvent and operational costs.

• High Sensitivity & Resolution: Innovative design minimizes dead volume and cross-contamination.

• Regulatory Compliance: Fully supports methods outlined.

• Complete Solution: From routine HPLC to advanced UHPLC-MS/MS quantification.

All DIVISION LC systems are engineered for reliability, precision, and ease of use, making them the ideal choice for laboratories focused on quality, productivity, and compliance.
