INSPIRION TOC Series

Method Overview

Total Organic Carbon (TOC) analysis is a critical measurement for assessing organic content in water, solids, and process streams. It serves as a key indicator of purity, contamination, and environmental impact across numerous industries.

From monitoring wastewater discharge and ensuring pharmaceutical water purity to controlling ultrapure water in electronics manufacturing and evaluating soil fertility, TOC analyzers provide essential data for quality assurance, regulatory compliance, and process optimization.

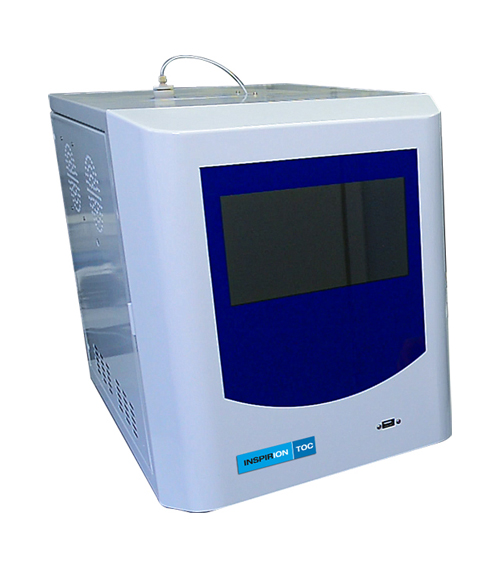

INSPIRION TOC Analyzer Series

The INSPIRION TOC series offers a comprehensive range of analyzers designed to meet the diverse needs of field, laboratory, and industrial applications. From portable units for on-site testing to robust online systems for continuous process monitoring, this family of instruments delivers accurate, reliable, and compliant TOC measurements.

1. Portable Analyzers: INSPIRION TOC 10 & TOC 1000 Series

Ideal for field use, mobile labs, or at-line monitoring, these compact analyzers provide rapid results with minimal setup.

INSPIRION TOC 10:

  • Method: UV-Persulfate Oxidation

  • Detection: Electrochemical (Direct Conductometry)

  • Measurement Range: 1 – 1000 µg/L

  • Detection Limit: 1 µg/L

  • Key Features: Suitable for inline sampling (optional), autonomous operation, and optional autosampler. Perfect for purified water checks and mobile testing.

INSPIRION TOC 1000S (Precision Portable):

  • Method: Enhanced UV Oxidation with Dual Lamp

  • Detection: Electrochemical (Direct Conductometry)

  • Measurement Range: 1 – 1500 µg/L

  • Detection Limit: 1 µg/L

  • Key Features: Reagent-free operation, higher sensitivity for low-concentration samples, PC-controlled operation, and optional autosampler.

2. Benchtop Laboratory Analyzers: INSPIRION TOC 200 & TOC 200B

These versatile, high-performance analyzers are the workhorses of the laboratory, capable of handling a wide variety of sample types, including challenging matrices.

INSPIRION TOC 200 / TOC 200B:

  • Method: High-Temperature Catalytic Combustion (680°C / 720°C)

  • Detection: Non-Dispersive Infrared (NDIR)

  • Measured Parameters: TC (Total Carbon), TIC (Total Inorganic Carbon), TOC, NPOC (Non-Purgeable Organic Carbon)

  • Measurement Range:

    • TOC 200: 0 – 35,000 mg/L

    • TOC 200B: 0 – 3,000 mg/L

  • Detection Limit: 50 µg/L

  • Reproducibility: ≤ 2% (TOC 200), ≤ 3% (TOC 200B)

  • Salt Tolerance: Up to 100 g/L (TOC 200), 85 g/L (TOC 200B)

  • Sample Types: Liquids and Solids

  • Key Features: Built-in display, robust reactor design for high-salinity samples, and optional 24-vial autosampler for liquids and solids.

Applications & Compliance

The INSPIRION TOC series supports a wide array of standardized methods, ensuring regulatory acceptance:

  • Water Quality: Analysis of total and dissolved carbon

  • Environmental & Wastewater: Determination of TC, TIC, and TOC in various waters (ASTM D7573, D6317, D4839).

  • Pharmaceutical Waters: TOC testing for purified water and Water for Injection (WFI) compliance

  • Ultrapure Water: Monitoring in microelectronics and power generation.

  • Soil & Solid Analysis: Fertility assessment and contamination studies.

Why Choose the INSPIRION TOC Series?

  • Complete Solution Range: From portable to online, covering every application need.

  • Method Flexibility: Supports both high-temperature combustion (for broadest application) and UV oxidation (for low-level, purified waters).

  • Robust Performance: Engineered for high matrix tolerance and long-term stability.

  • Regulatory Alignment: Compliant with key international (ASTM, EP) standards.

  • Ease of Use: Intuitive interfaces, optional autosamplers, and low-maintenance designs streamline workflow.

  • Industrial Reliability: Online analyzers are built for harsh environments and continuous operation.

Whether you need to ensure the purity of pharmaceutical water, monitor industrial effluent, or perform field studies, the INSPIRION TOC series provides the accuracy, reliability, and flexibility required for confident decision-making.
